I N T E R S E C T I O N S¶
Here You will find various explanations and examples for many intersection operations, and between many kinds of objects, like edges with edges, edges with surfaces, surface with a shell, shell with another shell and much more.
Intersection between curves:¶
To calculate the intersections between any two curves, you can call the curve_intersections methods. It will work for any edges in curves.py module.
For example, to calculate the intersections between a Ellipse2D and Circle2D you can do as follows:
import design3d
from design3d import edges, curves
from design3d.core import EdgeStyle
circle = curves.Circle2D(frame=design3d.Frame2D(origin=design3d.Point2D(0.0, 0.0), u=design3d.Vector2D(1.0, -2.2204460492503126e-16), v=design3d.Vector2D(-2.4980018054066027e-16, 1.0)), radius=1)
ellipse2d = curves.Ellipse2D(frame=design3d.Frame2D(origin=design3d.Point2D(1.6329931618544102, -1.1547005383785152), u=design3d.Vector2D(-0.8164965809277259, 0.5773502691896258), v=design3d.Vector2D(0.5773502691896258, 0.8164965809277259)),
major_axis=1.7320508075677725, minor_axis=0.9999999999993615)
intersections = circle.curve_intersections(ellipse2d)
ax = ellipse2d.plot()
circle.plot(ax, EdgeStyle('r'))
for p in intersections:
p.plot(ax, 'b')
Intersections betweeen edges¶
Edges are generally objects having a curve as its base tragectoty and a start and end points on that curve. We Have edges like LineSegment, Arc, FullArc, ArcEllipse, FullArcEllipse, BSplineCurve, both in 2-D and in 3-D.
To calculate the intersections between any two edges, you can call the intersections methods. It will work for any edges in edges.py module.
For example, to calculate the intersections between a BSplineCurve2D and Arc2D you can do as follows:
import design3d
from design3d import curves, edges
from geomdl import utilities
from design3d.core import EdgeStyle
degree = 3
points = [design3d.Point2D(0, 0), design3d.Point2D(1, 1), design3d.Point2D(2, -1), design3d.Point2D(3, 0)]
knotvector = utilities.generate_knot_vector(degree, len(points))
knot_multiplicity = [1] * len(knotvector)
bspline1 = edges.BSplineCurve2D(degree, points, knot_multiplicity, knotvector, None, False)
arc = edges.Arc2D.from_3_points(design3d.Point2D(0, 0.3), design3d.Point2D(1, -0.3), design3d.Point2D(2, 2))
intersections = bspline1.intersections(arc)
ax = bspline1.plot()
arc.plot(ax, EdgeStyle('r'))
for i in intersections:
i.plot(ax, 'c')
(Source code, png, hires.png, pdf)
Another example in 3D: BSplineCurve3D and LineSegment3D:
import design3d
from design3d import edges
from design3d.core import EdgeStyle
from design3d.models.edges import bspline_curve3d
#Here we are using a bspline curve previously defined as a model curve.
bs3d = bspline_curve3d()
#take two points of the bspline to use them to defined an intersecting line segment.
pt1, point2 = bs3d.points[30], bs3d.points[85]
vec = point2 - pt1
vec = vec.to_vector()
lineseg = edges.LineSegment3D(pt1 - vec*0.5, point2 + vec * 0.5)
#Search for intersections
intersections = bs3d.intersections(lineseg)
#plot results, the point on blue are the intersection points.
ax = bs3d.plot()
lineseg.plot(ax, EdgeStyle('r'))
for intersection in intersections:
intersection.plot(ax, 'b')
Intersections betweeen an edge and a curve¶
Intersections betweeen a wire/contour and an edge¶
If you ever need to calcule the intersections of a wire/contour with any edge, you can use the edge_intersections method.
Example:
import design3d
from design3d.models.contours import contour2_unittest
from design3d.models.edges import bspline1
from design3d.core import EdgeStyle
# Here we are going to use a model contour2d and also a model bsplinecurve2d.
contour2d = contour2_unittest.copy()
contour2d = contour2d.translation(design3d.Vector2D(1, 0.0))
#search for intersections betweeen a contour2d and an edge.
edge_intersections = contour2d.edge_intersections(bspline1)
#plot
ax = contour2d.plot()
bspline1.plot(ax, EdgeStyle('r'))
for intersection in edge_intersections:
intersection.plot(ax, 'g')

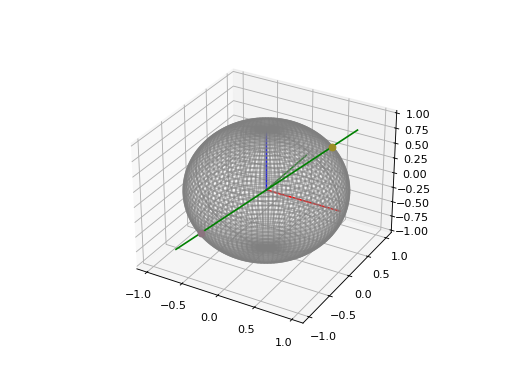

Intersections between surface and edges¶
In the same way, it is also possible to calculate intersections between a Surface3D and an edge of any type using the same command: edge_intersections . #todo: structure for method edge_structure.
import design3d
from design3d import edges, primitives3d, wires, surfaces
from design3d.core import EdgeStyle
from design3d.utils.common_operations import random_color
spherical_surface3d = surfaces.SphericalSurface3D(design3d.OXYZ, 1)
ax = spherical_surface3d.plot(color='b')
linesegment = edges.LineSegment3D(design3d.Point3D(-0.8, -0.8, -0.8), design3d.Point3D(0.8, 0.8, 0.8))
linesegment_intersections = spherical_surface3d.linesegment_intersections(linesegment)
linesegment.plot(ax, EdgeStyle('g'))
for p in linesegment_intersections:
p.plot(ax, random_color())
(Source code, png, hires.png, pdf)

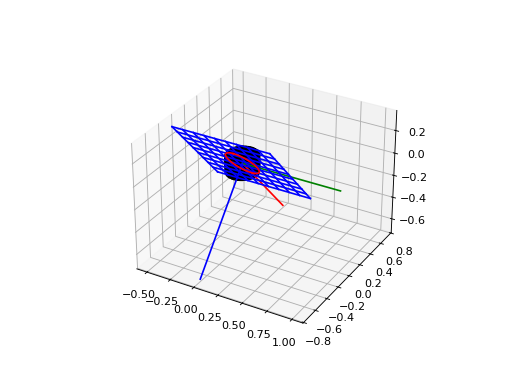

Intersections between two surfaces¶
import design3d
from design3d import faces, surfaces, edges
from design3d.core import EdgeStyle
R = 0.15
cylindricalsurface = surfaces.CylindricalSurface3D(design3d.OXYZ, R)
plane = surfaces.Plane3D(design3d.Frame3D(design3d.O3D, design3d.Vector3D(0.0, 0.7071067811865475, -0.7071067811865476), design3d.Vector3D(1.0, 0.0, 0.0), design3d.Vector3D(0.0, -0.7071067811865476, -0.7071067811865475)))
intersections = cylindricalsurface.plane_intersections(plane)
ax = cylindricalsurface.plot(edge_style=EdgeStyle('k'))
plane.plot(ax, edge_style=EdgeStyle('b'))
for intersection in intersections:
intersection.plot(ax, EdgeStyle('r'))
(Source code, png, hires.png, pdf)
Intersections betweeen surfaces and faces¶
The intersections between a Face3D and a Surface3D are also possible, and you can do it by also calling the surface_intersection method.
Example:
import design3d
from design3d import faces, surfaces, edges
from design3d.core import EdgeStyle
Intersections between two faces¶
If you have any two faces intersecting, you can search these intersections by calling face_intersections method.
Example:
import design3d
from design3d import surfaces, faces
from design3d.core import EdgeStyle
face1 = faces.PlaneFace3D.from_surface_rectangular_cut(surfaces.Plane3D(design3d.OXYZ), -1, 1, -1, 1)
face2 = faces.PlaneFace3D.from_surface_rectangular_cut(surfaces.Plane3D(design3d.OYZX), -1, 1, -1, 1)
face_intersections = face1.face_intersections(face2)
ax = face1.plot()
face2.plot(ax, 'r')
for intersection in face_intersections:
intersection.plot(ax, EdgeStyle('b'))
(Source code, png, hires.png, pdf)
Intersection between a face and an edge¶
Edges can intersect faces too. The method edge_intersections will do all the work, and it will return the intersections between two objects.
Example:
import design3d
from design3d import faces, surfaces, edges
from design3d.core import EdgeStyle
face1 = faces.PlaneFace3D.from_surface_rectangular_cut(surfaces.Plane3D(design3d.OXYZ), -1, 1, -1, 1)
lineseg = edges.LineSegment3D(design3d.Point3D(-.5, -.5, -.5), design3d.Point3D(.5, .5, .5))
linseg_intersections = face1.linesegment_intersections(lineseg)
ax = face1.plot()
lineseg.plot(ax, EdgeStyle('g'))
for ls in linseg_intersections:
ls.plot(ax, 'y')
(Source code, png, hires.png, pdf)
